How do I select a runtime component?

Container Runtime is one of the core components of Kubernetes, responsible for managing images and the lifecycle of containers.

When creating a cluster through the platform, you can choose Containerd or Docker as the container runtime component.

Tip: Starting from Kubernetes 1.24, Docker runtime is no longer officially supported. It is recommended to use Containerd as the runtime. If you still need to use Docker runtime, please contact the administrator to enable this feature.

Note: Due to component dependencies and platform architecture considerations, the correspondence between supported Kubernetes versions and types/versions of container runtime components for self-built clusters on the platform can be found in Cluster Component Version Requirements . This document only discusses the differences between Containerd and Docker for your reference.

Quick Type Selection

Choose Containerd	Choose Docker
Shorter call chain, fewer components, more stable, less node resource consumption	Docker in Docker support; Ability to use `docker build/push/save/load` commands on nodes; Access to Docker API; Support for Docker Compose or Docker Swarm.

Docker and Containerd components are different

Component common commands

Containerd	Docker	Description
crictl ps	docker ps	View running containers
crictl inspect	docker inspect	View container details
crictl logs	docker logs	View container logs
crictl exec	docker exec	Execute commands inside a container
crictl attach	docker attach	Attach to a running container
crictl stats	docker stats	Display container resource usage
crictl create	docker create	Create a container
crictl start	docker start	Start a container
crictl stop	docker stop	Stop a container
crictl rm	docker rm	Remove a container
crictl images	docker images	View the list of images
crictl pull	docker pull	Pull images
N/A	docker push	Push images
crictl rmi	docker rmi	Remove images
crictl pods	N/A	View the list of pods
crictl inspectp	N/A	View pod details
crictl runp	N/A	Start a pod
crictl stopp	docker images	View images
ctr images ls	N/A	Stop a pod
crictl stopp	docker load/save	Import/export images
ctr images import/exporter	N/A	Stop a pod
ctr images pull/push	docker pull/push	Pull/push images
ctr images tag	docker tag	Tag images

Call Chain Distinction

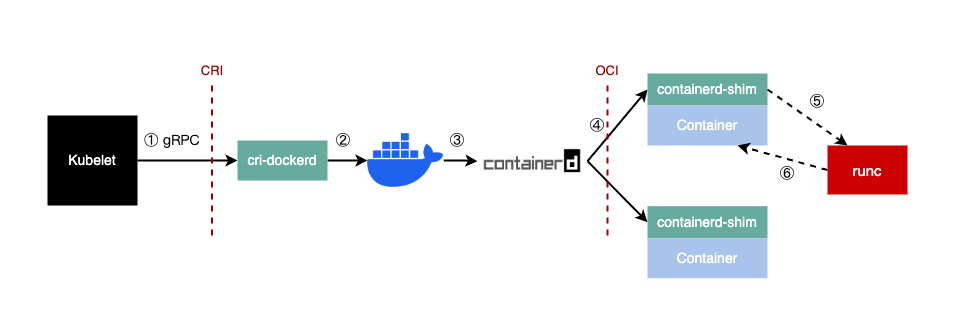

For Docker as the Kubernetes container runtime, the call chain is as follows:

kubelet > cri-dockerd > dockerd > containerd > runC

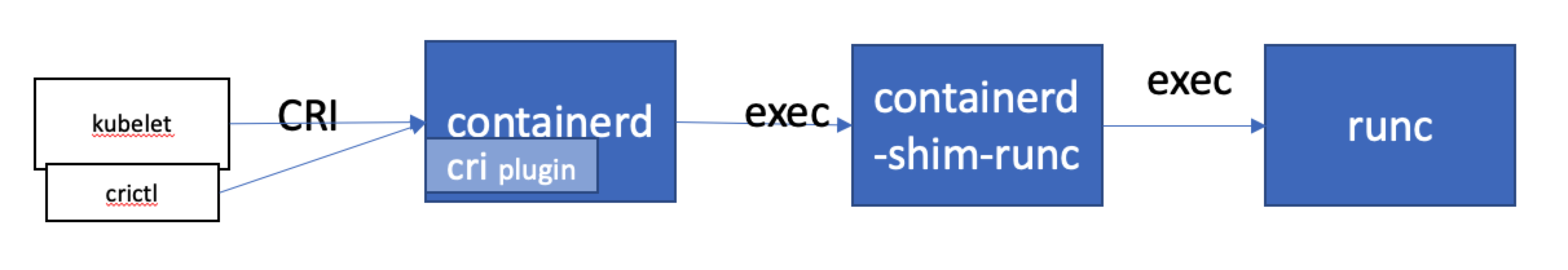

For Containerd as the Kubernetes container runtime, the call chain is as follows:

kubelet > CRI plugin (within the containerd process) > containerd > runC

Summary: While dockerd adds functionality such as swarm cluster, docker build, and docker API, it may introduce some bugs and an additional layer of calls compared to containerd. Containerd has a shorter call chain, fewer components, more stability, and consumes fewer node resources.

Comparison Item	Docker	Containerd
Storage Path	If Docker is used as the Kubernetes container runtime, container logs are stored by Docker in directories like `/var/lib/docker/containers/$CONTAINERID`. Kubelet creates symlinks in `/var/log/pods` and `/var/log/containers` pointing to the log files in `/var/lib/docker/containers/$CONTAINERID`.	If Containerd is used as the Kubernetes container runtime, Kubelet handles the storage of container logs in the directory `/var/log/pods/$CONTAINER_NAME` and creates symlinks in `/var/log/containers` pointing to the log files.
Configuration Parameters	In Docker configuration file: `"log-driver": "json-file",` `"log-opts": {"max-size": "100m","max-file": "5"}`	* Method 1: Specify in kubelet parameters: `--container-log-max-files=5` `--container-log-max-size="100Mi"` * Method 2: Specify in KubeletConfiguration: `"containerLogMaxSize": "100Mi"` `"containerLogMaxFiles": 5`
Saving Container Logs to Data Disk	Mount the data disk to the “data-root” (default is `/var/lib/docker`).	Create a symlink `/var/log/pods` pointing to a directory on the data disk mount point.

CNI Network Comparison
