#Monitoring Module Architecture

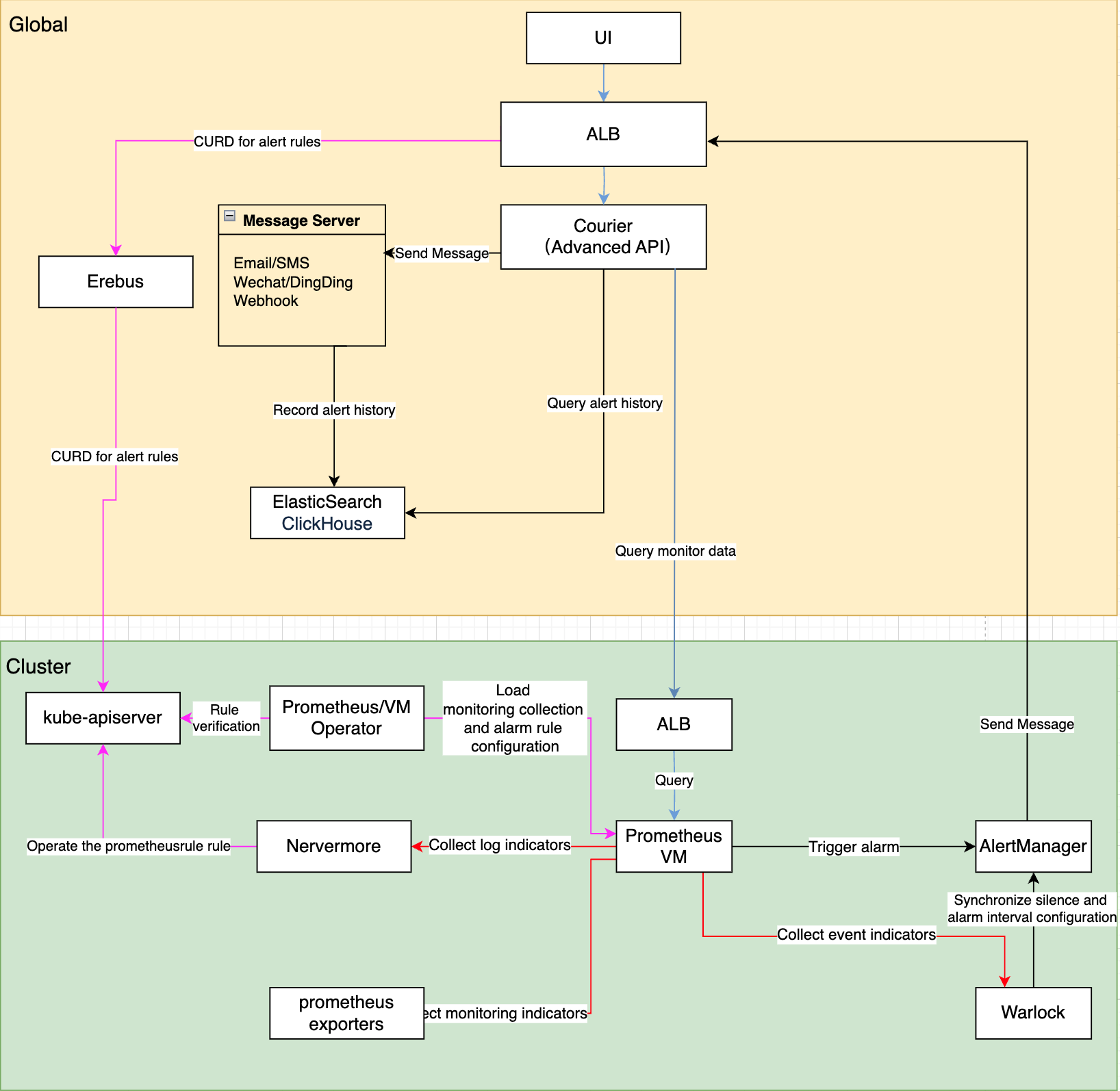

#Overall Architecture Explanation

The monitoring system consists of the following core functional modules:

1. Monitoring System
   • Data Collection and Storage: Collecting and persisting monitoring metrics from multiple sources
   • Data Query and Visualization: Providing flexible query and visualization capabilities for monitoring data
2. Alerting System
   • Alert Rule Management: Configuring and managing alert policies
   • Alert Triggering and Notification: Evaluating alert rules and dispatching notifications
   • Real-time Alert Status: Providing a real-time view of the current alert status of the system
3. Notification System
   • Notification Configuration: Managing notification templates, contact groups, and policies
   • Notification Server: Managing the configuration of various notification channels

#Monitoring System

#Data Collection and Storage

1. Prometheus/VictoriaMetrics Operator Responsibilities:
   • Load and validate monitoring collection configurations
   • Load and validate alert rule configurations
   • Synchronize configurations to Prometheus/VictoriaMetrics instances
2. Sources of Monitoring Data:
   • Nevermore: Generates log-related metrics
   • Warlock: Generates event-related metrics
   • Prometheus/VictoriaMetrics: Discovers and collects various exporters' metrics via ServiceMonitor

#Data Query and Visualization

1. Monitoring Data Query Process:

   • The browser initiates a query request (Path: /platform/monitoring.alauda.io/v1beta1)
   • ALB forwards the request to the Courier component
   • Courier API processes the query:
     • Built-in Metrics: Obtains PromQL through the indicators interface and queries
     • Custom Metrics: Directly forwards PromQL to the monitoring component
   • The monitoring dashboard retrieves data and displays it

2. Monitoring Dashboard Management Process:

   • Users access the global cluster ALB (Path: /kubernetes/cluster_name/apis/ait.alauda.io/v1alpha2/MonitorDashboard)
   • ALB forwards the request to the Erebus component
   • Erebus routes the request to the target monitoring cluster
   • The Warlock component is responsible for:
     • Validating the legality of the monitoring dashboard configuration
     • Managing the MonitorDashboard CR resource

#Alerting System

#Alert Rule Management

The alert rule configuration process:

1. Users access the global cluster ALB (Path: /kubernetes/cluster_name/apis/monitoring.coreos.com/v1/prometheusrules)
2. The request passes through ALB -> Erebus -> target cluster kube-apiserver
3. Responsibilities of each component:
   • Prometheus/VictoriaMetrics Operator:
     • Validating the legality of alert rules
     • Managing PrometheusRule CR
   • Nevermore: Listening for and processing log alert metrics
   • Warlock: Listening for and processing event alert metrics

#Alert Processing Workflow

1. Alert Evaluation:
   • PrometheusRule/VMRule defines alert rules
   • Prometheus/VictoriaMetrics evaluates rules periodically
2. Alert Notification:
   • Alerts are sent to Alertmanager once triggered
   • Alertmanager -> ALB -> Courier API
   • Courier API is responsible for dispatching notifications
3. Alert Storage:
   • Alert history is stored in ElasticSearch/ClickHouse

#Real-time Alert Status

1. Status Collection:
   • The global cluster Courier generates metrics:
     • cpaas_active_alerts: Current active alerts
     • cpaas_active_silences: Current silence configurations
   • Global Prometheus collects every 15 seconds
2. Status Display:
   • The front-end queries and displays real-time status via Courier API

#Notification System

#Notification Configuration Management

The management process for notification templates, notification contact groups, and notification policies is as follows:

1. Users access the standard API of the global cluster via a browser
   • Access path: /apis/ait.alauda.io/v1beta1/namespaces/cpaas-system
2. Managing related resources:
   • Notification Template: apiVersion: "ait.alauda.io/v1beta1", kind: "NotificationTemplate"
   • Notification Contact Group: apiVersion: "ait.alauda.io/v1beta1", kind: "NotificationGroup"
   • Notification Policy: apiVersion: "ait.alauda.io/v1beta1", kind: "Notification"
3. Courier is responsible for:
   • Validating the legality of notification templates
   • Validating the legality of notification contact groups
   • Validating the legality of notification policies

#Notification Server Management

1. Users access the global cluster's ALB via a browser
   • Access path: /kubernetes/global/api/v1/namespaces/cpaas-system/secrets
2. Managing and submitting notification server configurations
   • Resource name: platform-email-server
3. Courier is responsible for:
   • Validating the legality of the notification server configuration
