Configuring SR-IOV

By configuring the physical server nodes to support the creation of virtual machines with SR-IOV (Single Root I/O Virtualization) network cards, lower latency for virtual machines is achieved, along with support for standalone IPv6 as well as dual-stack IPv4/IPv6 functionality.

TOC

TerminologyConstraints and LimitationsPrerequisitesChartImagesProceduresResult VerificationRelated NotesKernel Parameter Configuration for CentOS Virtual Machines

Terminology

TermDefinition
Multus CNIActs as middleware for other CNI plugins to enable Kubernetes to support multiple network interfaces for Pods.
SR-IOVAllows virtualization of the physical NIC on a node, splitting it into multiple VFs for use by Pods or virtual machines, providing superior network performance.
VFA virtual device created from a physical PCI device; VFs can be allocated directly to virtual machines or containers, resembling independent physical PCI devices, significantly improving I/O performance.

Constraints and Limitations

The SR-IOV feature relies on glibc and only supports glibc versions 2.34 and above. However, both Kylin V10 and CentOS 7.x operating systems do not support this version, and thus, SR-IOV functionality cannot be used on these two operating systems.

Prerequisites

Obtain the following charts and images and upload them to the image repository. This document uses the repository address build-harbor.example.cn as an example. For specific methods to obtain the charts and images, please contact the relevant personnel.

Chart

  • build-harbor.example.cn/example/chart-sriov-network-operator:v3.15.0

Images

  • build-harbor.example.cn/3rdparty/sriov/sriov-network-operator:4.13
  • build-harbor.example.cn/3rdparty/sriov/sriov-network-operator-config-daemon:4.13
  • build-harbor.example.cn/3rdparty/sriov/sriov-cni:4.13
  • build-harbor.example.cn/3rdparty/sriov/ib-sriov-cni:4.13
  • build-harbor.example.cn/3rdparty/sriov/sriov-network-device-plugin:4.13
  • build-harbor.example.cn/3rdparty/sriov/network-resources-injector:4.13
  • build-harbor.example.cn/3rdparty/sriov/sriov-network-operator-webhook:4.13
  • build-harbor.example.cn/3rdparty/kubectl:v3.15.1

Procedures

Note: All commands mentioned below are executed in the terminal.

Enabling SR-IOV in the Physical Machine's BIOS

Before configuration, use the following command to check the motherboard information.

dmidecode -t 1
# dmidecode 3.3
Getting SMBIOS data from sysfs.
SMBIOS 2.7 present.

Handle 0x0100, DMI type 1, 27 bytes
System Information
    Product Name: PowerEdge R620
    Version: Not Specified
    Serial Number: 7SJNF62
    UUID: 4c4c4544-0053-4a10-804e-b7c04f463632
    Wake-up Type: Power Switch
    SKU Number: SKU=NotProvided;ModelName=PowerEdge R620
    Family: Not Specified

The operation to enable SR-IOV in the BIOS varies among server manufacturers. Please refer to the corresponding manufacturer's documentation. Generally, the steps are as follows:

  1. Reboot the server.

  2. When the brand logo is displayed on the screen during BIOS POST, press the F2 key to enter the system setup.

  3. Click Processor Settings > Virtualization Technology, and change Virtualization Technology setting to Enabled.

  4. Click Settings > Integrated devices, and change SR-IOV Global Enable setting to Enabled.

  5. Save the configuration and reboot the server.

Enabling IOMMU

The operation to enable IOMMU may vary across different operating systems. Please refer to the corresponding operating system documentation. This document uses CentOS as an example.

  1. Edit the /etc/default/grub file and add intel_iommu=on iommu=pt to the GRUB_CMDLINE_LINUX configuration item.

    GRUB_CMDLINE_LINUX="crashkernel=auto rd.lvm.lv=centos/root rhgb quiet intel_iommu=on iommu=pt"

  2. Execute the following command to generate the grub.cfg file.

    grub2-mkconfig -o /boot/grub2/grub.cfg

  3. Reboot the server.

  4. Execute the following command, and if the output shows IOMMU enabled, it indicates that the enabling is successful.

    dmesg | grep -i iommu

Loading the VFIO Module in the System Kernel

  1. Execute the following command to load the vfio-pci module.

    modprobe vfio-pci

  2. Once loaded, execute the following command. If the configuration information can be displayed normally, then the VFIO kernel module has been loaded successfully.

    # For CentOS, execute the following command to check the VFIO loading status
lsmod | grep vfio
vfio_pci               41993  0
vfio_iommu_type1       22440  0
vfio                   32657  2 vfio_iommu_type1, vfio_pci
irqbypass              13503  2 kvm, vfio_pc


# For Ubuntu, execute the following command to check the VFIO loading status
cat /lib/modules/$(uname -r)/modules.builtin | grep vfio
kernel/drivers/vfio/vfio.ko
kernel/drivers/vfio/vfio_virqfd.ko
kernel/drivers/vfio/vfio_iommu_type1.ko
kernel/drivers/vfio/pci/vfio-pci-core.ko
kernel/drivers/vfio/pci/vfio-pci.ko

Creating VF Devices

  1. Execute the following command to see the currently supported VF devices.

    find /sys -name *vfs*

/sys/devices/pci0000:00/0000:00:03.0/0000:05:00.1/sriov_totalvfs
/sys/devices/pci0000:00/0000:00:03.0/0000:05:00.1/sriov_numvfs
/sys/devices/pci0000:00/0000:00:03.0/0000:05:00.0/sriov_totalvfs
/sys/devices/pci0000:00/0000:00:03.0/0000:05:00.0/sriov_numvfs

    The output information indicates as follows:

    • 0000:05:00 .1: The PCI address of the SR-IOV physical NIC enp5s0f1.

    • 0000:05:00 .0: The PCI address of the SR-IOV physical NIC enp5s0f0.

    • sriov_totalvfs: Number of supported VFs.

    • sriov_numvfs: Current number of VFs.

  2. Execute the following command to get information on the physical machine's NIC.

    ifconfig

enp5s0f0: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.66.213  netmask 255.255.255.0  broadcast 192.168.66.255
        inet6 1066::192:168:66:213  prefixlen 112  scopeid 0x0<global>
        inet6 fe80::a236:9fff:fe29:6c00  prefixlen 64  scopeid 0x20<link>
        ether a0:36:9f:29:6c:00  txqueuelen 1000  (Ethernet)
        RX packets 13889  bytes 1075801 (1.0 MB)
        RX errors 0  dropped 1603  overruns 0  frame 0
        TX packets 5057  bytes 440807 (440.8 KB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

enp5s0f1: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet6 fe80::a236:9fff:fe29:6c02  prefixlen 64  scopeid 0x20<link>
        ether a0:36:9f:29:6c:02  txqueuelen 1000  (Ethernet)
        RX packets 1714  bytes 227506 (227.5 KB)
        RX errors 0  dropped 1604  overruns 0  frame 0
        TX packets 70  bytes 19241 (19.2 KB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

  3. Execute the command ethtool -i <NIC name> to obtain the corresponding physical NIC's PCI address, as shown below.

    ethtool -i enp5s0f0
driver: ixgbe
version: 5.15.0-76-generic
firmware-version: 0x8000030d, 14.5.8
expansion-rom-version:
bus-info: 0000:05:00.0     ## The PCI address of the enp5s0f0 NIC
supports-statistics: yes
supports-test: yes
supports-eeprom-access: yes
supports-register-dump: yes
supports-priv-flags: yes


ethtool -i enp5s0f1
driver: ixgbe
version: 5.15.0-76-generic
firmware-version: 0x8000030d, 14.5.8
expansion-rom-version:
bus-info: 0000:05:00.1    ## The PCI address of the enp5s0f1 NIC
supports-statistics: yes
supports-test: yes
supports-eeprom-access: yes
supports-register-dump: yes
supports-priv-flags: yes

  4. Execute the following command to create a VF. This document takes configuring the enp5s0f1 NIC as an example. If multiple NICs need to be virtualized, all of them need to be configured.

    cat /sys/devices/pci0000:00/0000:00:03.0/0000:05:00.1/sriov_totalvfs   ## Check the number of supported VFs
63

echo 8 > /sys/devices/pci0000:00/0000:00:03.0/0000:05:00.1/sriov_numvfs  ## Set the current number of VFs

cat /sys/devices/pci0000:00/0000:00:03.0/0000:05:00.1/sriov_numvfs   ## Check the current number of VFs
8

  5. Execute the following command to check if the VFs were created successfully.

    Note: You can see the configured 8 VF addresses, such as 05:10.1. These VF addresses need to be supplemented with the Domain Identifier, resulting in the final format: 0000:05:10.1.

    lspci | grep Virtual
00:11.0 PCI bridge: Intel Corporation C600/X79 series chipset PCI Express Virtual Root Port (rev 05)
05:10.1 Ethernet controller: Intel Corporation 82599 Ethernet Controller Virtual Function (rev 01)
05:10.3 Ethernet controller: Intel Corporation 82599 Ethernet Controller Virtual Function (rev 01)
05:10.5 Ethernet controller: Intel Corporation 82599 Ethernet Controller Virtual Function (rev 01)
05:10.7 Ethernet controller: Intel Corporation 82599 Ethernet Controller Virtual Function (rev 01)
05:11.1 Ethernet controller: Intel Corporation 82599 Ethernet Controller Virtual Function (rev 01)
05:11.3 Ethernet controller: Intel Corporation 82599 Ethernet Controller Virtual Function (rev 01)
05:11.5 Ethernet controller: Intel Corporation 82599 Ethernet Controller Virtual Function (rev 01)
05:11.7 Ethernet controller: Intel Corporation 82599 Ethernet Controller Virtual Function (rev 01)

Binding the VFIO Driver

  1. Download the binding script, and execute the python3 dpdk-devbind.py -b vfio-pci <VF address with domain identifier> command to bind the 8 VFs of the enp5s0f1 NIC to the vfio-pci driver, as shown below.

    python3 dpdk-devbind.py -b vfio-pci 0000:05:10.1
python3 dpdk-devbind.py -b vfio-pci 0000:05:10.3
python3 dpdk-devbind.py -b vfio-pci 0000:05:10.5
python3 dpdk-devbind.py -b vfio-pci 0000:05:10.7
python3 dpdk-devbind.py -b vfio-pci 0000:05:11.1
python3 dpdk-devbind.py -b vfio-pci 0000:05:11.3
python3 dpdk-devbind.py -b vfio-pci 0000:05:11.5
python3 dpdk-devbind.py -b vfio-pci 0000:05:11.7

  2. After binding successfully, execute the following command to check the binding results. Look for the already bound VFs in the Network devices using DPDK-compatible driver area in the output result. Among them, the VF device ID is 10ed.

    python3 dpdk-devbind.py --status

Network devices using DPDK-compatible driver
============================================
0000:05:10.1 '82599 Ethernet Controller Virtual Function 10ed' drv=vfio-pci unused=ixgbevf
0000:05:10.3 '82599 Ethernet Controller Virtual Function 10ed' drv=vfio-pci unused=ixgbevf
0000:05:10.5 '82599 Ethernet Controller Virtual Function 10ed' drv=vfio-pci unused=ixgbevf
0000:05:10.7 '82599 Ethernet Controller Virtual Function 10ed' drv=vfio-pci unused=ixgbevf
0000:05:11.1 '82599 Ethernet Controller Virtual Function 10ed' drv=vfio-pci unused=ixgbevf
0000:05:11.3 '82599 Ethernet Controller Virtual Function 10ed' drv=vfio-pci unused=ixgbevf
0000:05:11.5 '82599 Ethernet Controller Virtual Function 10ed' drv=vfio-pci unused=ixgbevf
0000:05:11.7 '82599 Ethernet Controller Virtual Function 10ed' drv=vfio-pci unused=ixgbevf

Network devices using kernel driver
===================================
0000:01:00.0 'NetXtreme BCM5720 Gigabit Ethernet PCIe 165f' if=eno1 drv=tg3 unused=vfio-pci
0000:01:00.1 'NetXtreme BCM5720 Gigabit Ethernet PCIe 165f' if=eno2 drv=tg3 unused=vfio-pci
0000:02:00.0 'NetXtreme BCM5720 Gigabit Ethernet PCIe 165f' if=eno3 drv=tg3 unused=vfio-pci
0000:02:00.1 'NetXtreme BCM5720 Gigabit Ethernet PCIe 165f' if=eno4 drv=tg3 unused=vfio-pci
0000:05:00.0 'Ethernet 10G 2P X520 Adapter 154d' if=enp5s0f0 drv=ixgbe unused=vfio-pci *Active*
0000:05:00.1 'Ethernet 10G 2P X520 Adapter 154d' if=enp5s0f1 drv=ixgbe unused=vfio-pci

No 'Baseband' devices detected
==============================

No 'Crypto' devices detected
============================

No 'DMA' devices detected
=========================

No 'Eventdev' devices detected
==============================

No 'Mempool' devices detected
=============================

No 'Compress' devices detected
==============================

No 'Misc (rawdev)' devices detected
===================================

No 'Regex' devices detected
===========================

Deploying the Multus CNI Plugin

  1. Go to Administrator.

  2. In the left navigation bar, click Cluster Management > Clusters.

  3. Click the name of the virtual machine cluster and switch to the Plugins tab.

    • Deploy the Multus CNI plugin.

Deploying the sriov-network-operator

Execute the following command to deploy the sriov-network-operator.

REGISTRY=<$registry>  # Replace the <$registry> part with the repository address where the sriov-network-operator image is located, for example: REGISTRY=build-harbor.example.cn
NICSELECTOR=["<nics>"] # Replace the <nics> part with the NIC names, for example: NICSELECTOR=["ens802f1","ens802f2"], separate multiple with commas
NUMVFS=<numVfs> # Replace the <numVfs> part with the number of VFs, for example: NUMVFS=8

cat <<EOF | kubectl create -f -
apiVersion: operator.alauda.io/v1alpha1
kind: AppRelease
metadata:
  annotations:
    auto-recycle: "true"
    interval-sync: "true"
  name: sriov-network-operator
  namespace: cpaas-system
spec:
  destination:
    cluster: ""
    namespace: "kube-system"
  source:
    charts:
    - name: <chartName> # Replace <chartName> with the actual chart path, for example: name = example/chart-sriov-network-operator
      releaseName: sriov-network-operator
      targetRevision: v3.15.0
    repoURL: $REGISTRY
  timeout: 120
  values:
    global:
      registry:
        address: $REGISTRY
    networkNodePolicy:
      nicSelector: $NICSELECTOR
      numVfs: $NUMVFS
EOF

Setting Node Role Identifier Labels for Physical Nodes

Note: Before performing this operation, ensure that the Pod of the sriov-network-operator is running normally.

  1. Go to Administrator.

  2. In the left navigation bar, click Cluster Management > Clusters.

  3. Click the cluster name and switch to the Nodes tab.

  4. Click the physical node that supports SR-IOV ⋮ > Update Node Labels.

  5. Set the node label as follows:

    • node-role.kubernetes.io/worker: ""

  6. Click Update.

Checking if the Resources are Created Successfully

In the CLI tool, execute the command kubectl -n cpaas-system get sriovnetworknodestates to check if the sriovnetworknodestates resource has been created successfully. If you see similar output below, it indicates that creation was successful. If the resource creation fails, check if the Multus CNI plugin and sriov-network-operator have been deployed successfully.

kubectl -n cpaas-system get sriovnetworknodestates
NAME                      SYNC STATUS           AGE
192.168.254.88            Succeeded             5d22h

Setting SR-IOV Node Feature Labels for Physical Nodes

Note: Before performing this operation, ensure that the sriovnetworknodestates resource has been successfully created.

  1. Go to Administrator.

  2. In the left navigation bar, click Cluster Management > Clusters.

  3. Click the cluster name and switch to the Nodes tab.

  4. Click the physical node that supports SR-IOV ⋮ > Update Node Labels.

  5. Set the node label as follows:

    • feature.node.kubernetes.io/network-sriov.capable: "true"

Checking NIC Device Support

  1. Execute the command lspci -n -s <VF address with domain identifier> to obtain the current NIC device's vendor ID and device ID, as shown below.

    lspci -n -s 0000:05:00.1
05:00.1 0200: 8086:154d (rev 01)

    The output indicates:

    • 8086: Vendor ID.
    • 154d: Device ID.

  2. Execute the command lspci -s <VF address with domain identifier> -vvv | grep Ethernet to obtain the current NIC name, as shown below.

    lspci -s 0000:05:00.1 -vvv | grep Ethernet
05:00.1 Ethernet controller: Intel Corporation Ethernet 10G 2P X520 Adapter (rev 01)

  3. In the cpaas-system namespace, locate the configuration file named supported-nic-ids with type ConfigMap, and check if the current NIC's configuration information is in the support list within its data section.

    Note: If the current NIC is not in the support list, you need to refer to Step 4 to add the NIC to the configuration file. If the current NIC is already in the support list, skip Step 4.

    kind: ConfigMap
apiVersion: v1
metadata:
  name: supported-nic-ids
  namespace: cpaas-system
data:
  Broadcom_bnxt_BCM57414_2x25G: 14e4 16d7 16dc
  Broadcom_bnxt_BCM75508_2x100G: 14e4 1750 1806
  Intel_i40e_10G_X710_SFP: 8086 1572 154c
  Intel_i40e_25G_SFP28: 8086 158b 154c
  Intel_i40e_40G_XL710_QSFP: 8086 1583 154c
  Intel_i40e_X710_X557_AT_10G: 8086 1589 154c
  Intel_i40e_XXV710: 8086 158a 154c
  Intel_i40e_XXV710_N3000: 8086 0d58 154c
  Intel_ice_Columbiaville_E810: 8086 1591 1889
  Intel_ice_Columbiaville_E810-CQDA2_2CQDA2: 8086 1592 1889
  Intel_ice_Columbiaville_E810-XXVDA2: 8086 159b 1889
  Intel_ice_Columbiaville_E810-XXVDA4: 8086 1593 1889

  4. Add the current NIC to the data section of the support list in the format <NIC Name>: <Vendor ID> <Device ID> <VF Device ID>, as shown below.

    kind: ConfigMap
apiVersion: v1
metadata:
  name: supported-nic-ids
  namespace: cpaas-system
data:
  Broadcom_bnxt_BCM57414_2x25G: 14e4 16d7 16dc
  Broadcom_bnxt_BCM75508_2x100G: 14e4 1750 1806

  Intel_Corporation_X520: 8086 154d 10ed            ## Add new NIC information

  Intel_i40e_10G_X710_SFP: 8086 1572 154c
  Intel_i40e_25G_SFP28: 8086 158b 154c
  Intel_i40e_40G_XL710_QSFP: 8086 1583 154c
  Intel_i40e_X710_X557_AT_10G: 8086 1589 154c
  Intel_i40e_XXV710: 8086 158a 154c
  Intel_i40e_XXV710_N3000: 8086 0d58 154c
  Intel_ice_Columbiaville_E810: 8086 1591 1889
  Intel_ice_Columbiaville_E810-CQDA2_2CQDA2: 8086 1592 1889
  Intel_ice_Columbiaville_E810-XXVDA2: 8086 159b 1889
  Intel_ice_Columbiaville_E810-XXVDA4: 8086 1593 1889

    Parameter configuration explanation:

    • Intel_Corporation_X520: The name of the NIC, which can be customized.
    • 8086: Vendor ID.
    • 154d: Device ID.
    • 10ed: VF Device ID, which can be found in the binding results.

Configuring IP Address

Log in to the switch to configure DHCP (Dynamic Host Configuration Protocol).

Note: If it is not possible to use DHCP, please manually configure the IP address in the virtual machine.

Result Verification

  1. Go to Container Platform.

  2. In the left navigation bar, click Virtualization > Virtual Machines.

  3. Click Create Virtual Machine, and when adding an auxiliary network card, select SR-IOV as the Network Type.

  4. Complete the creation of the virtual machine.

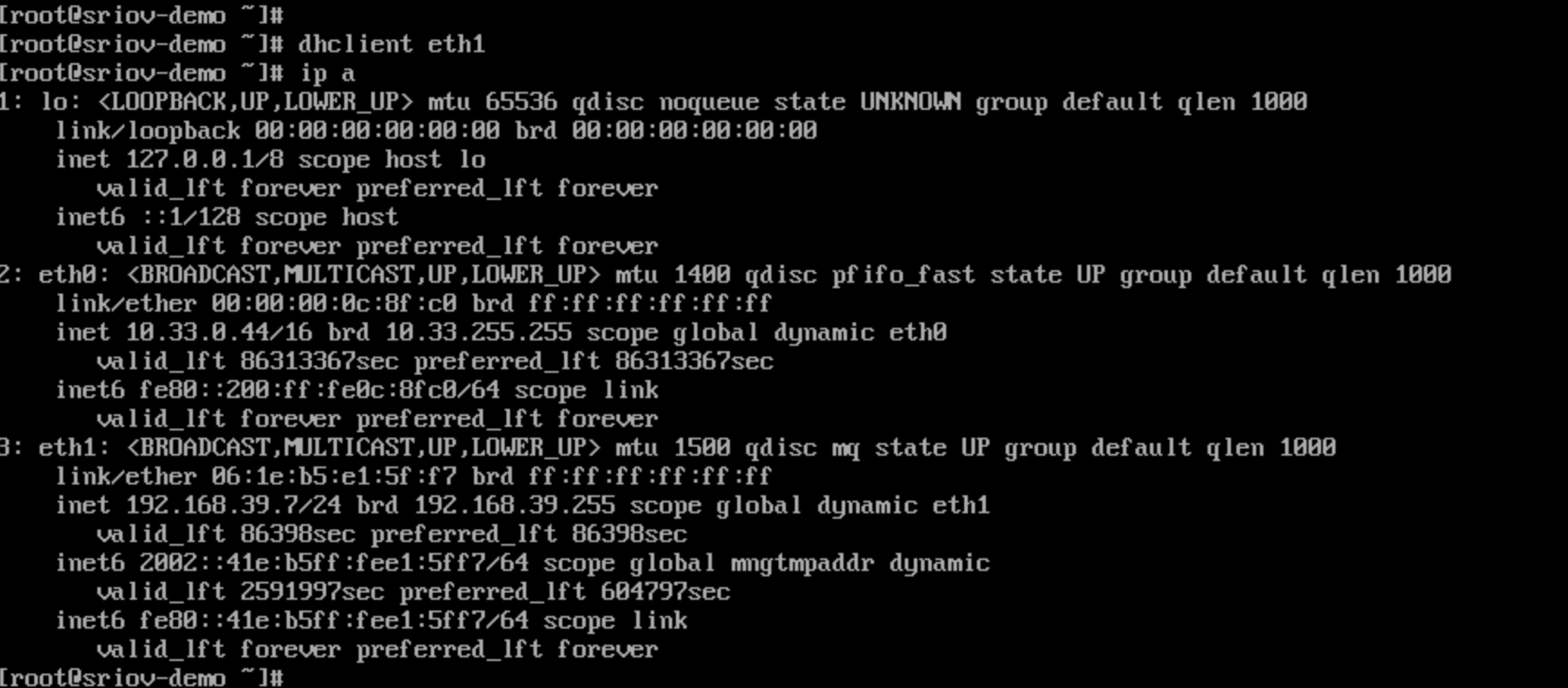

  5. Access the virtual machine through VNC, you should see that eth1 has successfully obtained an IP address, indicating that the configuration has been successful.

Kernel Parameter Configuration for CentOS Virtual Machines

After the CentOS virtual machine uses the SR-IOV NIC, it is necessary to modify the kernel parameters for the corresponding NIC. The specific steps are as follows.

  1. Open a terminal and execute the following command to modify the kernel parameters for the corresponding NIC. Replace the <NIC Name> part of the command with the actual NIC name.

    sysctl -w net.ipv4.conf.<NIC Name>.rp_filter=2
echo "net.ipv4.conf.<NIC Name>.rp_filter=2" >> /etc/sysctl.conf

  2. Execute the following command to load and apply all kernel parameter commands from the /etc/sysctl.conf file, so that the kernel configuration takes effect. When the value in the output information is 2, it indicates that the modification was successful.

    sysctl -p

    Output information:

    net.ipv4.conf.<NIC Name>.rp_filter = 2
