#Configure ALB Rules

#Introduction

#What is a Rule?

Rule is a Custom Resource(CR) that defines how incoming requests are matched and processed by the ALB.

Ingresses handled by ALB can be auto translated to rules.

#Prerequisites

install alb and ft

#Quick demo of rule

Here is a demo rule to give you a quick first impression of how to use rules.

apiVersion: crd.alauda.io/v1
kind: Rule
metadata:
  labels:
    alb2.cpaas.io/frontend: alb-demo-00080
    alb2.cpaas.io/name: alb-demo
  name: alb-demo-00080-test
  namespace: cpaas-system
spec:
  backendProtocol: "https"
  certificate_name: "a/b"
  dslx:
    - type: URL
      values:
        - - STARTS_WITH
          - /
  priority: 4
  serviceGroup:
    services:
      - name: hello-world
        namespace: default
        port: 80
        weight: 100

#match request with dslx and priority

#dslx

DSLX is a domain-specific language used to describe the matching criteria. For example, the rule below matches a request that satisfies all the following criteria:

• url starts with /app-a or /app-b
• method is post
• url param's group is vip
• host is *.app.com
• header's location is east-1 or east-2
• has a cookie name is uid
• source IPs come from 1.1.1.1-1.1.1.100

dslx:
  - type: METHOD
    values:
      - - EQ
        - POST
  - type: URL
    values:
      - - STARTS_WITH
        - /app-a
      - - STARTS_WITH
        - /app-b
  - type: PARAM
    key: group
    values:
      - - EQ
        - vip
  - type: HOST
    values:
      - - ENDS_WITH
        - .app.com
  - type: HEADER
    key: LOCATION
    values:
      - - IN
        - east-1
        - east-2
  - type: COOKIE
    key: uid
    values:
      - - EXIST
  - type: SRC_IP
    values:
      - - RANGE
        - "1.1.1.1"
        - "1.1.1.100"

#priority

Priority is an integer ranging from 0 to 10, where lower values indicate higher priority. To configure the priority of a rule in ingress, you can use the following annotation format:

# alb.cpaas.io/ingress-rule-priority-$rule_index-$path_index
alb.cpaas.io/ingress-rule-priority-0-0: "10"

For rules, simply set the priority directly in .spec.priority using an integer value.

#Action

After a request matches a rule, you can apply the following actions to the request

#Backend

#backend protocol

By default, the backend protocol is set to HTTP. If you want to use TLS re-encryption, you can configure it as HTTPS.

#Service Group and Session Affinity Policy

You can configure one or more services within a rule.

By default, the ALB uses a round-robin (RR) algorithm to distribute requests among backend services. However, you can assign weights to individual services or choose a different load balancing algorithm.

For more details, refer to Balance Algorithm.

#Creating Rule

#Using web console

1. Go to Container Platform.
2. Click on Network > Load Balancing in the left navigation bar.
3. Click on the name of the load balancer.
4. Click on the name of the listener port.
5. Click Add Rule.

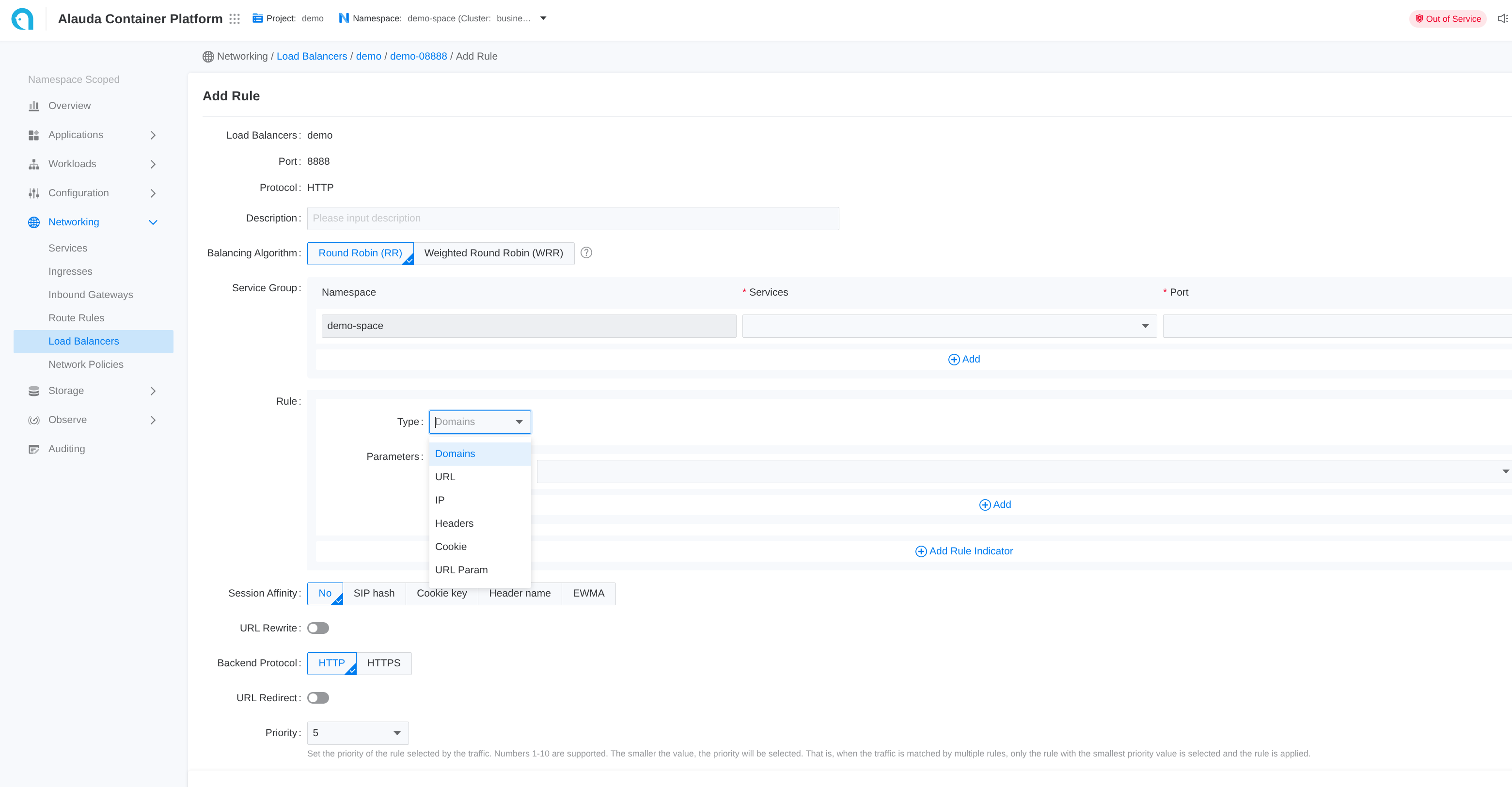

6. Refer to the following descriptions to configure the relevant parameters.
7. Click Add.

Each input item on the webui corresponds to a field of the CR

#using the CLI

kubectl apply -f alb-rule-demo.yaml -n cpaas-system

#Https

If the frontend protocol (ft) is HTTPS or GRPCS, the rule can also be configured to use HTTPS. You can specify the certificate either in the rule or in the ingress to match the certificate for that specific port.

Termination is supported, and re-encryption is possible if the backend protocol is HTTPS. However, you cannot specify a certificate for communication with the backend service.

#Certificate Annotation in Ingress

Certificates can be referenced across namespaces via annotation.

alb.networking.cpaas.io/tls: qq.com=cpaas-system/dex.tls,qq1.com=cpaas-system/dex1.tls

#Certificate in Rule

In .spec.certificate_name, the format is $secret_namespace/$secret_name

#TLS Mode

#Edge Mode

In edge mode, the client communicates with the ALB using HTTPS, and ALB communicates with backend services using HTTP protocol. To achieve this:

1. create ft use https protocol
2. create rule with backend protocol http, and specify cert via .spec.certificate_name

#Re-encrypt Mode

In re-encrypt mode, the client communicates with the ALB using HTTPS, and ALB communicates with backend services using HTTPS protocol. To achieve this:

1. create ft use https protocol
2. create rule with backend protocol https, and specify cert via .spec.certificate_name

#Ingress

#ingress sync

Each ALB creates an IngressClass with the same name and handles ingresses within the same project.

When an ingress namespace has a label like cpaas.io/project: demo, it indicates that the ingress belongs to the demo project.

ALBs that have the project name demo in their .spec.config.projects configuration will automatically translate these ingresses into rules.

#ssl strategy

For ingresses that do not have certificates configured, ALB provides a strategy to use a default certificate.

You can configure the ALB custom resource with the following settings:

• .spec.config.defaultSSLStrategy: Defines the SSL strategy for ingresses without certificates
• .spec.config.defaultSSLCert: Sets the default certificate in the format $secret_ns/$secret_name

Available SSL strategies:

• Never: Do not create rules on HTTPS ports (default behavior)
• Always: Create rules on HTTPS ports using the default certificate
