#What is DeepFlow

The DeepFlow open-source project aims to provide deep observability for complex cloud-native and AI applications. DeepFlow implemented Zero Code data collection with eBPF for metrics, distributed tracing, request logs and function profiling, and is further integrated with SmartEncoding to achieve Full Stack correlation and efficient access to all observability data. With DeepFlow, cloud-native and AI applications automatically gain deep observability, removing the heavy burden of developers continually instrumenting code and providing monitoring and diagnostic capabilities covering everything from code to infrastructure for DevOps/SRE teams.

#Using eBPF Technology

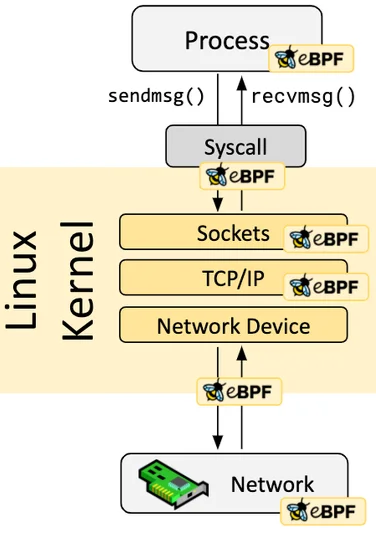

Assuming you have a basic understanding of eBPF, it is a secure and efficient technology for extending kernel functionality by running programs in a sandbox, a revolutionary innovation compared to traditional methods of modifying kernel source code and writing kernel modules. eBPF programs are event-driven, and when the kernel or user programs pass through an eBPF Hook, the corresponding eBPF program loaded at the Hook point will be executed. The Linux kernel predefines a series of commonly used Hook points, and you can also dynamically add custom Hook points in the kernel and applications using kprobe and uprobe technologies. Thanks to Just-in-Time (JIT) technology, the execution efficiency of eBPF code can be comparable to native kernel code and kernel modules. Thanks to the Verification mechanism, eBPF code will run safely without causing kernel crashes or entering infinite loops.

#Software Architecture

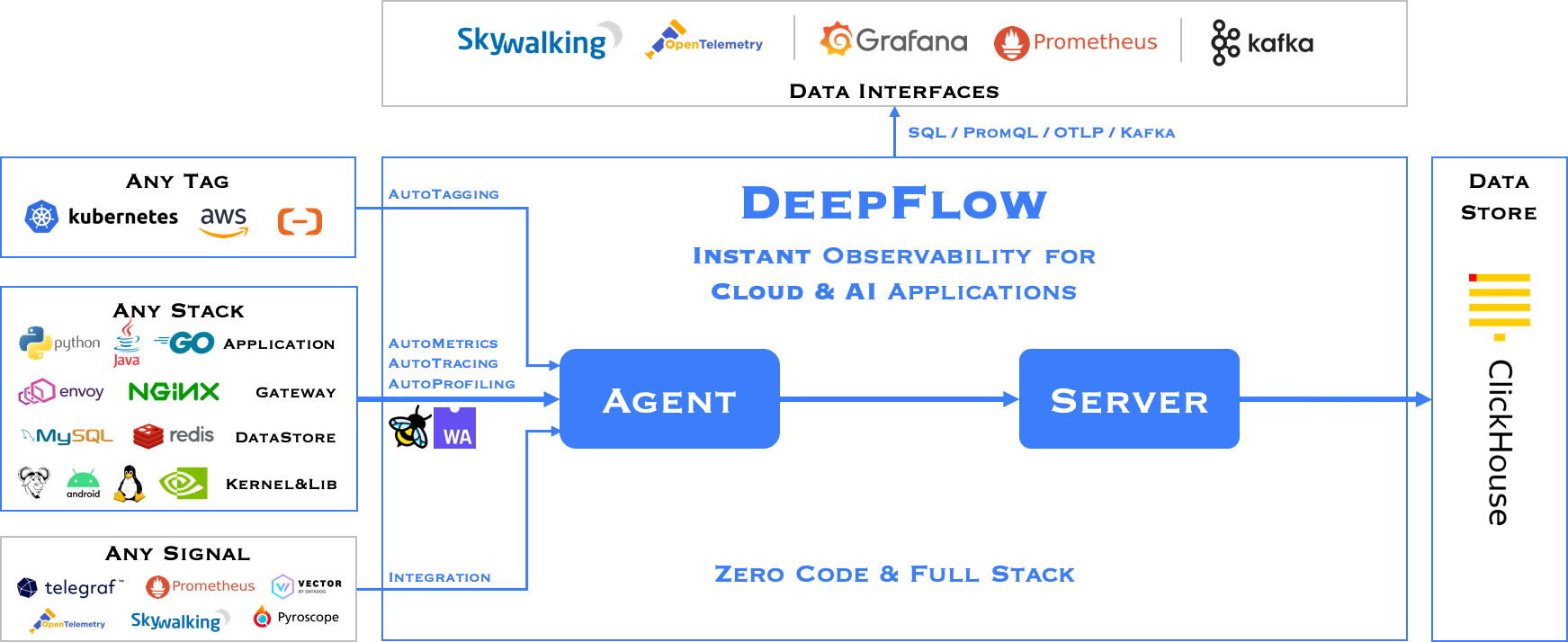

DeepFlow consists of two components, Agent and Server. An Agent runs in each K8s node, legacy host and cloud host, and is responsible for AutoMetrics and AutoTracing data collection of all application processes on the host. Server runs in a K8s cluster and provides Agent management, tag injection, data ingest and query services.

#Install DeepFlow

#Introduction

#Kernel Requirements

The eBPF capabilities (AutoTracing, AutoProfiling) in DeepFlow have the following kernel version requirements:

Additional notes on kernel versions:

#Deployment Topology

#Preparation

#Storage Class

We recommend using Persistent Volumes to store MySQL and ClickHouse data to avoid unnecessary maintenance costs. You can provide a default Storage Class or add the --set global.storageClass=<your storageClass> parameter to select a Storage Class for creating PVC.

For more information on storage configuration, please refer to the Storage documentation.

#Package

#Download the DeepFlow package

Visit the Custom Portal to download the DeepFlow package.

If you don't have access to the Custom Portal, contact technical support.

#Upload the package to the platform

Use the violet tool to publish the package to the platform.

For detailed instructions on using this tool, refer to the CLI.

#Install

Create an application resource in the cpaas-system namespace to deploy DeepFlow. Here is an example manifest:

apiVersion: app.k8s.io/v1beta1
kind: Application
metadata:
  name: deepflow
  namespace: cpaas-system
  annotations:
    app.cpaas.io/chart.source: public-charts/deepflow-plugin
    app.cpaas.io/chart.version: v4.1.0
    app.cpaas.io/chart.values: |
      {
        "global": {
          "storageClass": "example-sc"
        },
        "server": {
          "service": {
            "type": "ClusterIP"
          }
        },
        "deepflow-agent": {
          "clusterNAME": "cluster1"
        },
        "grafana": {
          "adminUser": "admin",
          "adminPassword": "password",
          "service": {
            "type": "ClusterIP"
          },
          "grafana.ini": {
            "server": {
              "root_url": "%(protocol)s://%(domain)s/clusters/cluster1/deepflow",
              "serve_from_sub_path": true
            }
          }
        },
        "mysql": {
          "storageConfig": {
            "persistence": {
              "size": "50G"
            }
          }
        },
        "clickhouse": {
          "storageConfig": {
            "persistence": [
              {
                "accessModes": [
                  "ReadWriteOnce"
                ],
                "name": "clickhouse-path",
                "size": "100Gi",
                "storageClass": "{{ .Values.global.storageClass }}"
              },
              {
                "accessModes": [
                  "ReadWriteOnce"
                ],
                "name": "clickhouse-storage-path",
                "size": "200Gi",
                "storageClass": "{{ .Values.global.storageClass }}"
              }
            ]
          }
        }
      }
    cpaas.io/display-name: 'DeepFlow'
  labels:
    sync-from-helmrequest: 'true'

Wait for the application to be ready:

kubectl -n cpaas-system wait --for=jsonpath='{.spec.assemblyPhase}'=Succeeded application deepflow
kubectl -n cpaas-system rollout status statefulset deepflow-clickhouse
kubectl -n cpaas-system rollout status deployment deepflow-mysql
kubectl -n cpaas-system rollout status deployment deepflow-server
kubectl -n cpaas-system rollout status deployment deepflow-app
kubectl -n cpaas-system rollout status deployment deepflow-grafana
kubectl -n cpaas-system rollout status daemonset deepflow-agent

#Configure Ingress for Grafana web UI

Create an Ingress resource to access the Grafana web UI. Here is an example manifest:

apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  annotations:
    nginx.ingress.kubernetes.io/backend-protocol: http
    nginx.ingress.kubernetes.io/enable-cors: "true"
  name: deepflow-grafana
  namespace: cpaas-system
spec:
  ingressClassName: cpaas-system
  rules:
  - http:
      paths:
      - backend:
          service:
            name: deepflow-grafana
            port:
              number: 80
        path: /clusters/${CLUSTER_NAME}/deepflow($|/)(.*)
        pathType: ImplementationSpecific

#Access the Grafana web UI

You can access the Grafana web UI via the URL specified in the Ingress resource, and login with the username and password you set in the Application resource.
